TEMPERATURE CHARTS

Insulation is importent when you have to install the box under cold conditions. If you whant to view the calculated insulating values, this is the place to look.

Danlåg, Danlaag +PE pipes ( Corrugated Ø i. d. 400 mm. ) 1,2 m. in ground.

Expected is thorough on one Computer-program from DTI to Danlaag, DTI is not responsinle for
educated number and curves.

Average of one cold and normaly year.

OBS! + ºC temperatures from ground shell ascribe to air temperature in the middle of boxes.
OBS! + ºC temperatures from water pipes shell ascribe to air temperature in the middle of boxes.

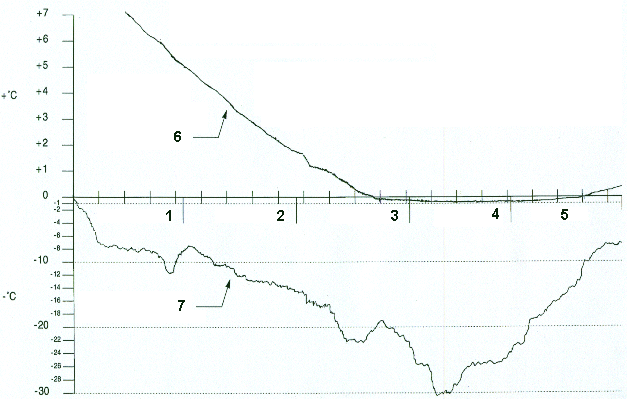

    1 = November. 2 = December. 3 = January. 4 = February. 5 = March.

    6 = Air temperature in the middle of Boxes.
    7 = Ait temperature Outside / Outdoor.

    This temperatur is average on 1953 – 1992.
